Heavy Duty Hexagonal Wire Netting Machine For Steel Rod With Automatic Stop System

Cina Heavy Duty Hexagonal Wire Netting Machine For Steel Rod With Automatic Stop System pemasok

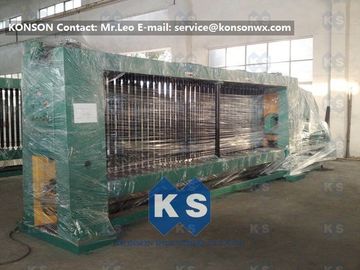

Gambar besar :  Heavy Duty Hexagonal Wire Netting Machine For Steel Rod With Automatic Stop System

Detail produk:

Place of Origin: Jiangsu, China
Nama merek: Konson
Sertifikasi: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS6080-4.0

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1 Set
Harga: Discuss in mail
Packaging Details: One 40' Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Contact Now
Detil Deskripsi produk

Heavy Duty Hexagonal Wire Netting Machine For Steel Rod With Automatic Stop System



1. Hexagonal Wire Netting Machine

The KS series hexagonal wire netting machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.

Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine.  Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.





2. Specification:

MODEL

MESH SIZE

MAX.WIRE DIA.

MAX WIDTH

PRODUCING RATE

KS6080-2.4

60X80

mm

3.0mm

2400mm

>3.3 m/min

KS6080-3.2

3.5mm

3200mm

KS6080-4.0

3.5mm

4300mm

KS80100-2.4

80X100

mm

3.5mm

2400mm

>3.5 m/min

KS80100-3.2

3.5mm

3200mm

KS80100-4.0

4.0mm

4300mm

KS100120-2.4

100X120

mm

3.5mm

2400mm

>3.5 m/min

KS100120-3.2

3.5mm

3200mm

KS100120-4.0

4.0mm

4300mm

KS120150-2.4

120X150

mm

4.0mm

2400mm

>3.8 m/min

KS120150-3.2

4.0mm

3200mm

KS120150-4.0

4.0mm

4300mm



3. New Hexagonal Wire Netting Machine

1. Model: KS100120-4.0

2. Mesh size: 100x120mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm



Heavy Duty Hexagonal Wire Netting Machine For Steel Rod With Automatic Stop System
