Customized Gabion Production Line Automatic Straightening Cutting Machine

Name: Customized Gabion Production Line Automatic Straightening Cutting Machine
Brand: Konson
SKU: KS80100-4.0
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (151 reviews)

Gambar besar : Customized Gabion Production Line Automatic Straightening Cutting Machine

Detail produk:

Place of Origin:	Jiangsu, China
Nama merek:	Konson
Sertifikasi:	CE, ISO9001, SGS test, Chinese Patent
Model Number:	KS80100-4.0

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Set
Harga:	Competitive price
Packaging Details:	One 40'Open Top Container, wooden pallet, as your design
Delivery Time:	within 30 days in receiving prepayment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets per Month

Kontak

Detil Deskripsi produk

Cahaya Tinggi:

gabion machine

hexagonal wire netting machine

Customized Gabion Production Line Automatic Straightening Wire Coiling Machine

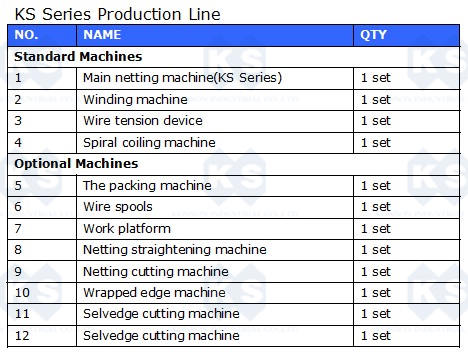

The Gabion production line includes four main standard parts:

Main netting machine, Winding machine, Wire tension device and Spiral coiling machine,

The machine used exclusively for export, and we provide the Installation Services.

Customized Gabion Production Line Automatic Straightening Cutting Machine 0

No.8 Netting Straightening Machine

1. The width can be designed, max size can be 4300mm.

2. Max. Wire Diameter: 5mm

3. Output: 8.5m/min

4. Power: 3KW

5. Roller Speed: 20turn/minute

KS netting straightening machine is the necessary equipment of the hexagonal wire mesh production line.

It is used for the structural deformation of the forming hexagonal wire mesh, and adjustment of wire's starting deformation, it also can reduce the deformation of wire stress, have good effect. This machine has separate transmission, manual adjusting, the aperture of pressing roll, handle control bottom, it can realize the upper roller's alone adjustment, inching and continuous sending into the material roller, it is easy to cooperate and grasp.
